Self Test Function IP65 Fire Resistant Battery Backup Emergency Bulkhead EL015AMNT

Name: Self Test Function IP65 Fire Resistant Battery Backup Emergency Bulkhead EL015AMNT
Brand: Zhui Ming
Price: 1 USD

Brand Name : Zhui Ming

Model Number : EL015AMNT

Certification : CE

Place of Origin : China

MOQ : 300 PCS

Supply Ability : 3000 PCS/DAY

Delivery Time : 35 Days after deposit

Packaging Details : 1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton

Operation : Non Maintained or Maintained

Lamp Used : 15 pcs DIP white LED

Battery : Nickel-Cadmium

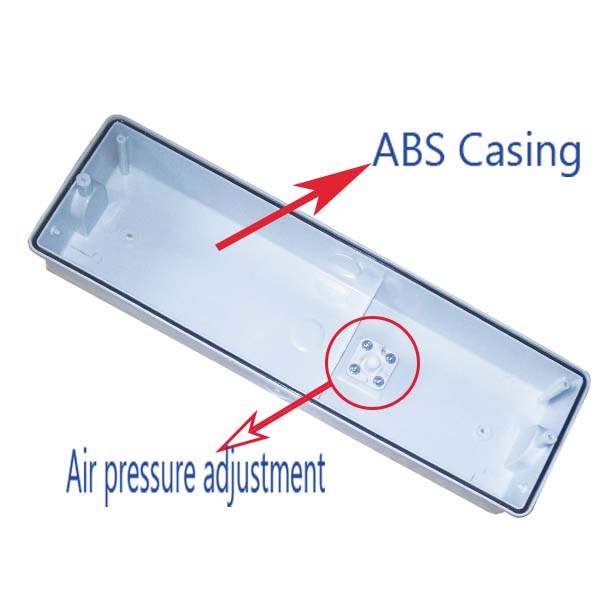

Construction : Fire-Retardant ABS Casing and Plate; PC Diffuser

IP Rate : IP 65

Warranty : 3 years

Duration : >3 hours

Usage : Fire Fighting Safety Emergency

Contact Now

Self Test Function IP65 Fire Resistant Battery Backup Emergency Bulkhead

Product Description

Operation	Non Maintained or Maintained
Input Voltage	110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current	120mA(Nominal)
Lamp type	15 pcs DIP white LED
Battery	Nickel-Cadmium Battery 3.6V 0.6Ah

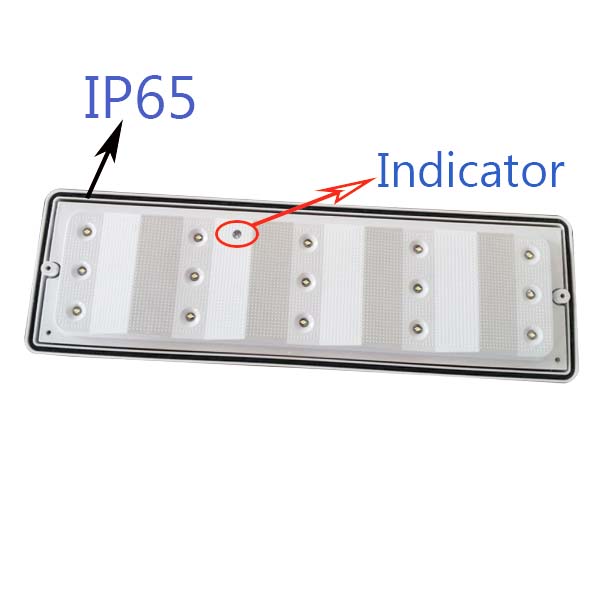

Indicator	Red LED Indicates Charging
Duration Time	More than 3 hours
Construction	Fire-Retardant ABS Casing and Plate; PS Diffuser
IP Rate	IP65
Installation	Wall Surface Mounted, Ceiling Surface Mounted
Weight	0.683kg
Working Temperature	-10°C to 55°C
Size	345mm×118mm×80mm Tolerance ±0.03mm
Customization	Battery, Duration Time, Package

Self Test Function IP65 Fire Resistant Battery Backup Emergency Bulkhead EL015AMNT

Packaging & Shipping

Package	1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton
Mater Carton Size	450mm×370mm×260mm
Gross Weight	8.45 kg
Net Weight	6.83 kg

Our Services

Warranty: 3 years
Indicator: red or green can be selected
Operation mode, Duration time, Battery type, Products' appearance can be customized
We do not offer free samples but will reimburse the buyer once an order is confirmed.

Company Information

Business Type: Manufacturer, Trading Company
Location : Zhejiang, China (Mainland)
Years Established: 2008
Specialize in Emergency Light & Exit Sign for 5 years
Fast delivery:30 Working days
OEM and Special packing, like color box, industrial box, or as per customer's requirements.
CE, RoHS are safe guarantee of our products
3 development engineers for products make us have strong R&D Capability

Self Test Function
1. Indicator status without test button operation

Indicator	Performance	Means Status
Red	Lit	Charging
Green	Lit	Fully charged
	Slow Blink(1Hz)	Manual check mode
	Blink(3Hz)	Automatic monthly self-check mode
	Quick blink(5Hz)	Automatic annual self-check mode
Yellow	Lit	Battery aging, or too short emergency time
	Slow blink(1Hz)	Battery is in short circuit or open circuit
	blink(3Hz)	Wrong connection with lamps or not matchable lamps
Off		Emergency or stop working conditio

2.Test Button Operation and Indicator Status

Press Time	Indicator Status	Check mode
<1S	No reaction	None. To avoid mistakenly operating
1~3s	Slow blink (1Hz) in green	check mode and discharge for 5 seconds
3~5s	blink(3Hz) in green	monthly self-check mode and discharge for 2 mins
	Quick blink(5Hz) in green	annual self-check mode and discharge for 1 hour
>7s		Stop discharging to recharge again

Self Test Function IP65 Fire Resistant Battery Backup Emergency Bulkhead EL015AMNT
